Soil Mixing is a versatile ground improvement technique used to enhance the engineering properties of weak soils by blending them in-situ with cementitious or chemical binders. The process increases bearing capacity, improves settlement performance and can also be used to remediate contaminated land without the need for excavation and disposal.
Installation

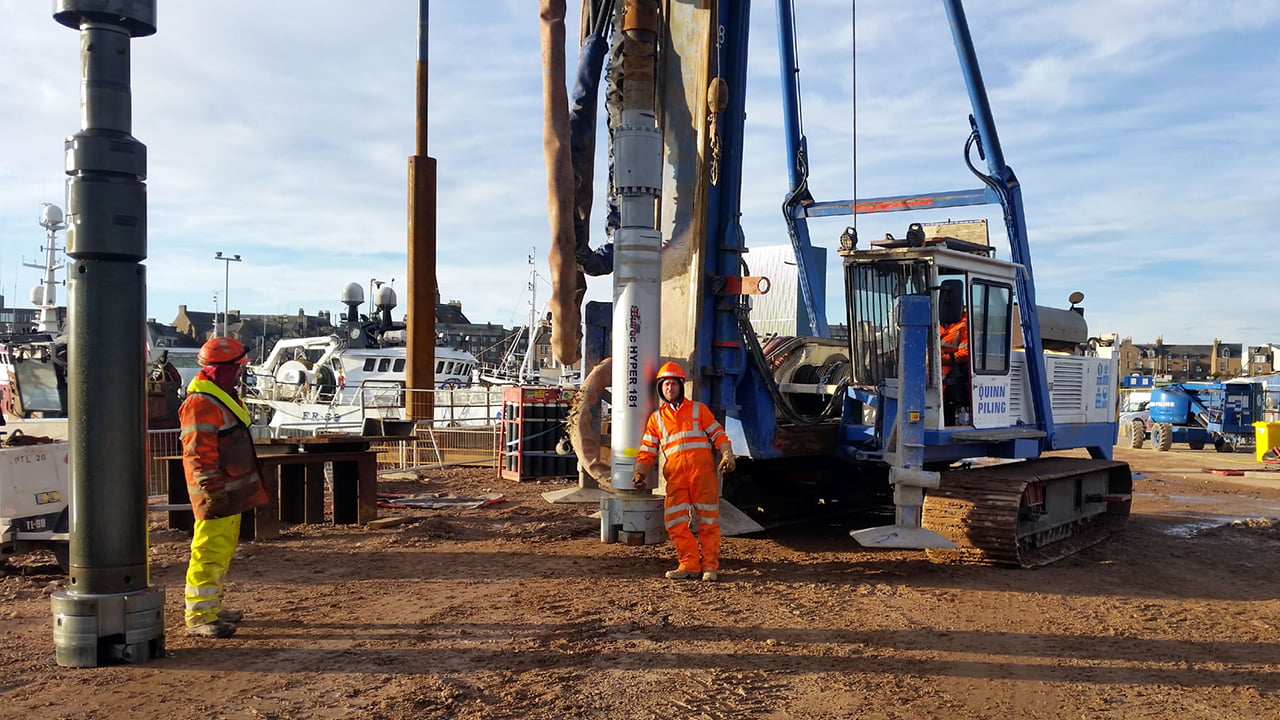

Deep Soil Mixing (DSM) is carried out using specialist rotary drilling rigs fitted with mixing tools that inject cementitious or chemical binders through the auger stem as the soil is mechanically blended in-situ. The binder, typically introduced as a wet grout, is carefully controlled throughout the installation process to produce soil mix columns of the required diameter and depth.
For shallow applications, a modified excavator-mounted mixing head blends stabilising materials into the upper soil profile to depths of up to 5 metres, providing rapid stabilisation or remediation across large treatment areas.
Trial mixes and laboratory testing are undertaken where required to determine the optimum binder composition and achieve the required engineering performance.
Suitable for both deep and shallow applications, Soil Mixing provides an efficient and sustainable solution for developments on marginal, brownfield and environmentally sensitive sites.
Our Capability
Quinn Piling delivers both Deep and Shallow Soil Mixing solutions across Ireland and the UK, providing ground improvement and environmental remediation tailored to individual project requirements.
Working alongside our wider piling and ground improvement capabilities, we develop bespoke Soil Mixing solutions that improve ground performance while reducing construction costs and environmental impact.
Our Soil Mixing capability includes:
- Deep Soil Mixing (DSM)
- Shallow Soil Mixing
- Ground improvement
- Environmental remediation
- Cut-off walls
- Working platform stabilisation
- Embankment support
- Retaining wall and slope stabilisation
- Complex and restricted access projects
Key Benefits
Soil Mixing provides an economical and environmentally responsible solution for improving weak ground and treating contaminated soils.
Key benefits include:
- Improves bearing capacity
- Reduces and controls settlement
- Reduces soil permeability where required
- Stabilises weak and organic soils
- Can remediate contaminated land in-situ
- Minimal spoil generation
- Quiet, low vibration installation
- Reduces project costs and construction programmes
- Can replace more expensive deep foundation solutions
- Sustainable solution using readily available materials
Applications & Performance
Soil Mixing is widely used for both ground improvement and environmental remediation across commercial, industrial and infrastructure projects.
Typical applications include:
- Brownfield redevelopment
- Commercial and industrial developments
- Environmental remediation
- Cut-off walls
- Embankment support
- Working platform stabilisation
- Retaining walls
- Slope stabilisation
- Infrastructure projects
- Ground improvement beneath slabs and foundations
Soil Mixing offers a flexible and sustainable solution for improving poor ground conditions by increasing bearing capacity, reducing settlement and enhancing overall ground stability.
Available in both deep and shallow applications, the technique enables sites previously considered unsuitable for development to be treated efficiently while minimising waste, reducing environmental impact and accelerating construction programmes.
