Band Drains, also known as Prefabricated Vertical Drains (PVDs), are an effective ground improvement solution used to accelerate the consolidation of soft, compressible soils.
Installed in conjunction with surcharge loading, they provide vertical drainage paths that allow excess pore water pressure to dissipate more rapidly, significantly reducing settlement times while improving overall ground stability.

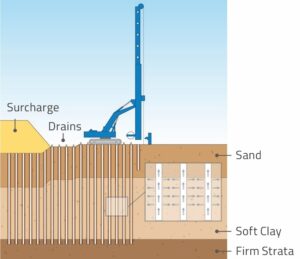

Band drains are installed using a specialist stitcher mast, which pushes a hollow steel mandrel containing the prefabricated drain to the required design depth or refusal. The mandrel is then withdrawn, leaving the drain securely anchored within the ground before the process is repeated at the next predetermined location.
Once installation is complete, surcharge loading is typically placed over the treated area. The vertical drains provide short drainage paths, allowing pore water pressure to dissipate rapidly and significantly accelerating the consolidation of the underlying soils.
This simple and efficient installation process enables large treatment areas to be completed quickly while minimising disruption to surrounding operations.

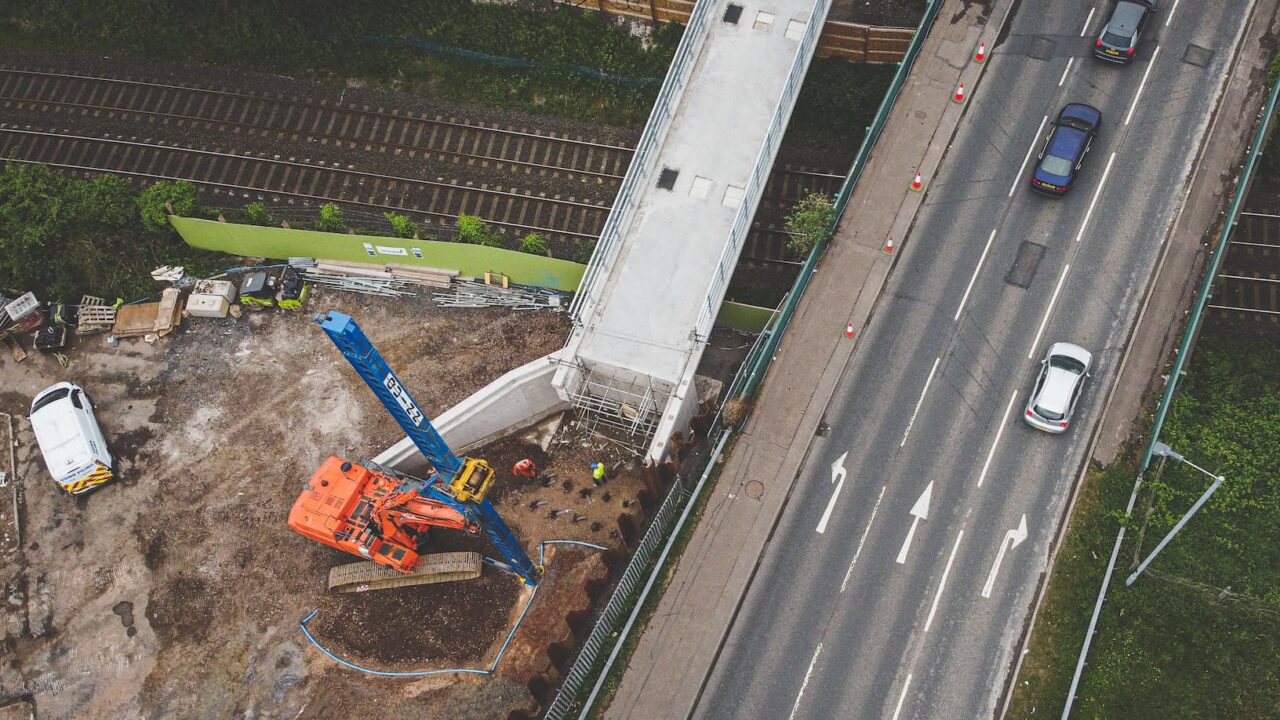

Quinn Piling delivers specialist Band Drain installations across Ireland and the UK, providing cost-effective ground improvement solutions for large-scale infrastructure and development projects. Working alongside our wider ground improvement and piling capabilities, we can deliver fully integrated foundation solutions tailored to individual site conditions and programme requirements.
Our Band Drain capability includes:
Band drains are widely used on infrastructure, flood defence and land reclamation projects where soft ground would otherwise require extended consolidation periods before construction can commence.
Band Drains provide an economical and highly effective method of improving soft ground prior to construction.
Band Drains are commonly used where soft cohesive soils require accelerated consolidation before permanent construction begins.
Typical applications include:
Band Drains provide a highly efficient ground improvement solution by significantly reducing consolidation periods that would otherwise take many years to occur naturally.
When installed beneath surcharge loading, settlement rates can be increased by up to 90% in soft and very soft clays, enabling earlier construction while improving long-term ground performance.
